Horizontal Burn

Horizontal Bunsen Burner Test (for aviation)

The Horizontal Bunsen Burner test is used by the aerospace/aviation industry to determine the resistance of cabin and cargo compartment materials to a flame applied for 15-seconds. It is most commonly used to show compliance with 14 CFR 25.853(a) or CAR 3.388(a).

Test Methods

  • 14 CFR 23, Appendix F, Part I(e)
  • 14 CFR 25, Appendix F, Part I(b)(5)
  • FAA Fire Test Handbook, Chapter 3
  • FAA Advisory Circular AC 23-2A
  • Boeing BSS 7230-F3/F4
  • Douglas DMS 1505 & 1507
  • RTCA DO-160G, Section 26.6.3
Horizontal

Test Summary

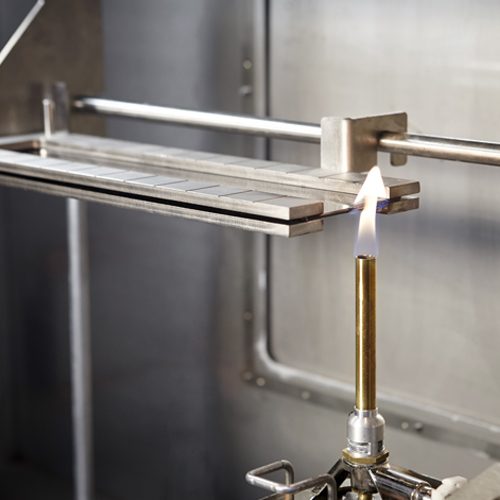

A test sample is aligned horizontally and exposed to a small Bunsen burner flame at one edge. The flame is applied for 15 seconds and then pulled away from the sample. The rate of flame travel across the sample is measured between two points. The pass/fail criterion is based on the burn rate averaged across three test samples.

Test Sample Requirements

Test samples must meet the following requirements:

    • The standard sample size is 3-inch x 12-inch unless the actual size used in the aircraft is smaller.
    • A minimum of 3 samples must be tested.
    • The sample thickness must be no thicker than the minimum thickness to be qualified for use in the airplane, except in the following scenarios:
        • Thick foam parts are tested in 1/2" thickness.
        • If testing to the 4.0 inch-per-minute requirements of 14 CFR 23.853(d)(3), 25.853(a), or 29.853(a), the test samples must be no more than 1/8-inch thick.
    • If the material could react differently depending which direction it is cut, it must be tested in two directions. For example, woven materials (e.g. carpet, fabric, etc.) must be tested with 3 samples cut up the roll and 3 samples cut across the roll.
    • Samples may be tested either as a section cut from a fabricated part as installed in the aircraft or constructed to simulate that part.
    • Fabricated units, such as sandwich panels, may not be separated for testing.
    • The shorter edge of the test sample where the flame is applied must not consist of a finished or protected edge, i.e. it must represent a cross section of the material or part as installed in the aircraft.

Regulatory Requirements

This test is typically used to show compliance with the following U.S. Federal Regulations:

    • CAR 3.388(a)
    • 14 CFR 23.853(a)
    • 14 CFR 23.853(d)(3)
    • 14 CFR 23.855(b)
    • 14 CFR 25.853(a)
    • 14 CFR 25.855(d)
    • 14 CFR 27.853(a)
    • 14 CFR 27.855(a)
    • 14 CFR 29.853(a)
    • 14 CFR 29.855(a)

Note 1: In the aviation industry, 14 CFR may also be referred to as "FAR" (Federal Aviation Regulations). You may see the requirements listed as FAR 23.853, FAR 25.853, FAR 25.855, etc.

Note 2: The European Union Aviation Safety Agency (EASA) uses similar Certification Specifications (CS) which correspond to those in the CFR. For example, the EASA regulations are listed as CS 23.853, CS 25.853, etc. These regulations may also be referred to as "JAR" (Joint Aviation Requirements) and listed as JAR 23.853, JAR 25.853, etc.

Products Requiring This Test

Normal Category Aircraft & Rotorcraft
All items in normal category aircraft and rotorcraft require the Horizontal Bunsen Burner Test when they are located in a cargo compartment or a compartment occupied by the crew or passengers.

Transport Category Aircraft & Rotorcraft
Some items in transport category aircraft and rotorcraft require the Horizontal Bunsen Burner Test when they are located in a cargo compartment or a compartment occupied by the crew or passengers. While there are some exceptions, these items typically include:

  • Clear Plastic Windows & Signs
  • Elastomeric Material Parts
  • Seat Belts & Harnesses
  • Cargo & Baggage Tiedown Equipment (incl. bins, pallets, etc.)

History of the Horizontal Bunsen Burner Test

In 1949, the Civil Aeronautics Board (CAB) issued Civil Air Regulation (CAR) Part 3 for Normal, Utility, Acrobatic, and Restricted Category Airplanes. Section 3.388(a) required at a minimum for flash-resistant materials to be used in cabin interiors, and flame-resistant materials when smoking was permitted. CAR Part 4b (Transport Category Airplanes), CAR Part 6 (Normal Category Rotorcraft), and CAR Part 7 (Transport Category Rotorcraft) were released in the following years with similar requirements. The term "flash-resistant" was originally defined as materials "which would not support combustion to the point of propagation, beyond safe limits, a flame after the removal of the ignition source." The term "flame-resistant" was originally defined as materials "which will not burn violently when ignited." To provide acceptable test methods for demonstrating compliance with these regulations, the CAB issued Safety Regulation Release No. 259 in 1947. This was replaced by Flight Standards Service Release (FSSR) No. 453 in 1961 after the Federal Aviation Administration (FAA) replaced the CAB. The Horizontal Bunsen Burner test methods were similar to those found in Federal Specification CCC-T-191b, Method 5902, which was originally issued for government procurement purposes.

The Civil Air Regulations (CARs) were replaced by the Federal Aviation Regulations (FARs) in 1965. The FARs can be found in Title 14 of the Code of Federal Regulations (CFR). The initial release used the same terminology as the previous CAR regulations with "flash-resistant" and "flame-resistant" requirements. The Horizontal Bunsen Burner Test requirements carried on into the new regulations through FSSR No. 453.

In 1967, the FARs were updated to create a Vertical Bunsen Burner Test and remove references to "flash-resistant" and "flame-resistant". The new regulations required materials to be self-extinguishing and be tested to both the Vertical Burn Test and Horizontal Burn test. Appendix F was also created, which provided test procedures for both requirements.

In 1984, the FAA released Advisory Circular AC 23-2, which provided clarification and guidance by listing acceptable test methods to show compliance with the flash-resistant, flame-resistant, self-extinguishing, and other requirements. The Horizontal Burn test underwent a few changes since its creation. Individual manufacturers and organizations also established their own internal versions of the Horizontal Burn Test, such as Airbus (ABD0031/AITM 2.0003), Boeing (BSS 7230), McDonnell Douglas (DMS 1505 and 1507), and ASTM International (ASTM F776, withdrawn in 1998).

In order to facilitate improvements to the test standard without constantly changing the CFR, the FAA published Report DOT/FAA/CT-99/15 "Aircraft Materials Fire Test Handbook" in 1990. The tests in this handbook are considered an acceptable equivalent to those in the CFR. The handbook was updated in 2000 to DOT/FAA/AR-00/12, with the Horizontal Bunsen Burner Tests located in Chapter 3 of the handbook.

Sources: Civil Air Regulations (CAR) Part 3 / Federal Register Vol. 29, No.250 / Flight Standards Service Release No. 453 / Federal Register Vol. 32, No. 182

Additional Resources

Resource Description
14 CFR 23.853 Passenger and Crew Compartment Interiors
(Normal, Utility, Acrobatic, and Commuter Category Airplanes)
U.S. Regulations for FAR 23.853 at Amendment 23-62. (Historical)
14 CFR 23.855 Cargo and Baggage Compartment Fire Protection
(Normal, Utility, Acrobatic, and Commuter Category Airplanes)
U.S. Regulations for FAR 23.855 at Amendment 23-49. (Historical)
14 CFR 23, Appendix F Appendix F to Part 23
(Commuter Category Airplanes)
U.S. Regulations, Criteria and Test Procedures. (Historical)
14 CFR 25.853 Compartment Interiors
(Transport Category Airplanes)
U.S. Regulations for FAR 25.853 at Amendment 25-116.
14 CFR 25.855 Cargo or Baggage Compartments
(Transport Category Airplanes)
U.S. Regulations for FAR 25.855 at Amendment 25-142.
14 CFR 25, Appendix F Appendix F to Part 25
(Transport Category Airplanes)
U.S. Regulations, Criteria and Test Procedures.
14 CFR 27.853 Compartment Interiors
(Normal Category Rotorcraft)
U.S. Regulations for FAR 27.853 at Amendment 27-37.
14 CFR 29.853 Compartment Interiors
(Transport Category Rotorcraft)
U.S. Regulations for FAR 29.853 at Amendment 29-30.
14 CFR 29.855 Cargo and Baggage Compartments
(Transport Category Rotorcraft)
U.S. Regulations for FAR 29.855 at Amendment 29-30.
FAA Fire Test Handbook,
Chapter 3 		FAA Aircraft Materials Fire Test Handbook (DOT/FAA/AR-00/12); Chapter 3; Horizontal Bunsen Burner Test for Cabin, Cargo Compartment, and Miscellaneous Materials.
This handbook provides an acceptable means of compliance with the relevant regulations. This is the preferred test method to find compliance with the listed regulations.
FAA Advisory Circular,
AC 23-2A 		Flammability Tests
This advisory circular provides information and guidance concerning compliance with FAR Part 23 and CAR Part 3 applicable to flammability tests for various materials, components, and electrical wire.
FAA Policy Memo
PS-ANM-25.853-01-R2
 		Flammability Testing of Interior Materials
This policy memo provides guidance on acceptable methods of compliance with the flammability requirements of 14 CFR Part 25 for commonly constructed parts, construction details, and materials.
